Back Office Settings for: Pax A35, A920 Pro, and A77 Setup

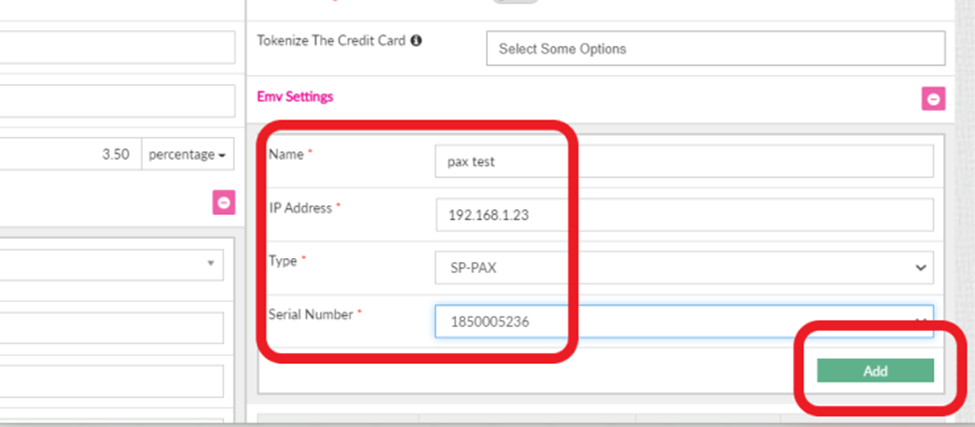

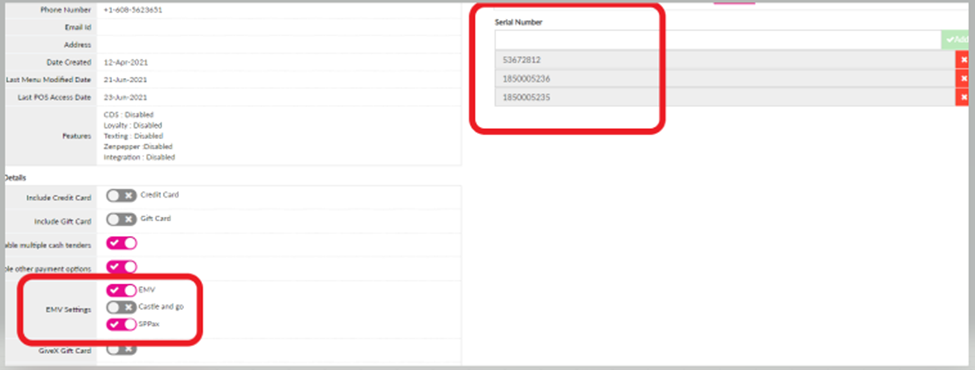

On the Admin page, please enable EMV, and SP Pax and add the terminal’s serial number. If you copy the serial number, make sure there is no space when you paste it in the serial number section.

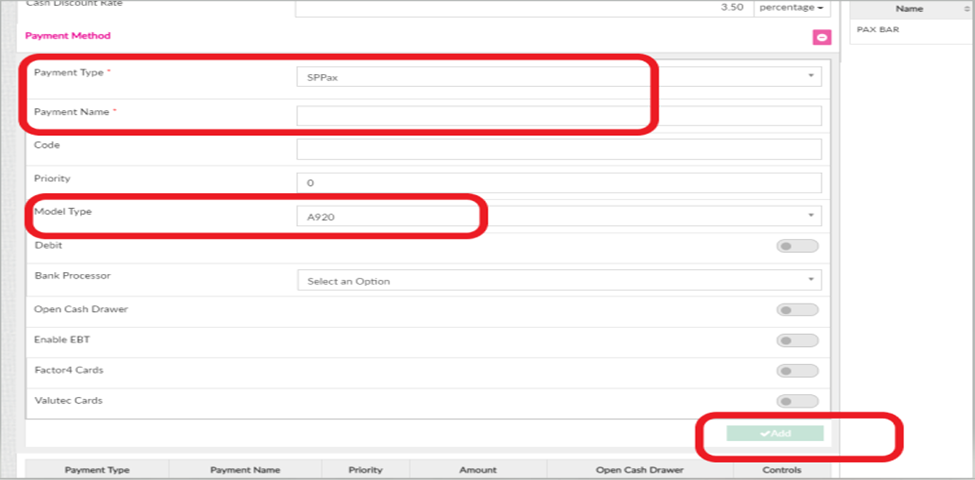

After that log into the store and add tender payment. Go to setting> store> payment> Add payment Method. In payment type choose SP Pax, payment name would be the tender payment name and in mode type choose the pax model if it is A920 pro or A77, or S300.
For the Pax A35, please choose the s300 model type
After that
hit adds> Update.
Terminal Setup (A920, A920 pro and A77)
We need the

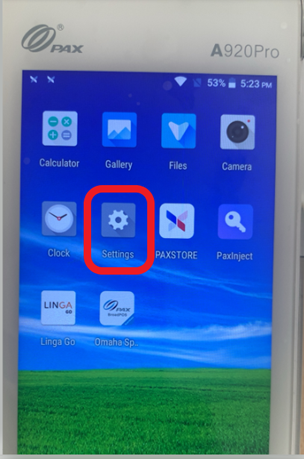

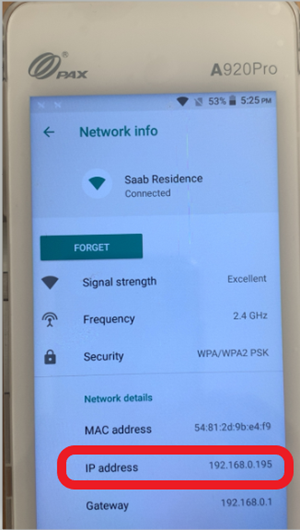

IP address of the terminal to put it in the back office. To pull up the IP

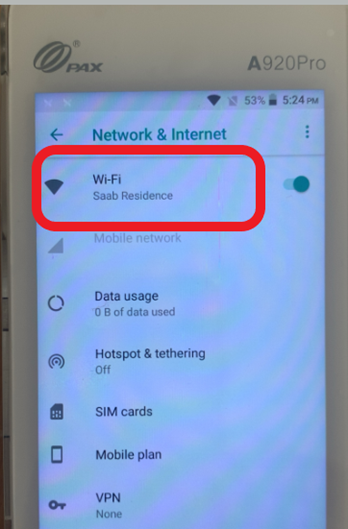

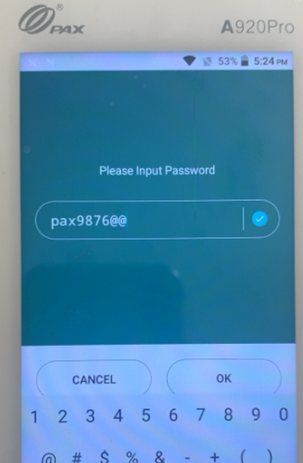

address we need to go to Settings on the terminal> the default password is pax9876@@ > Wifi> Click on connected Wi-Fi and
get the IP address.
Semi Integrated Pax A35, A920 pro and A77 setup
To

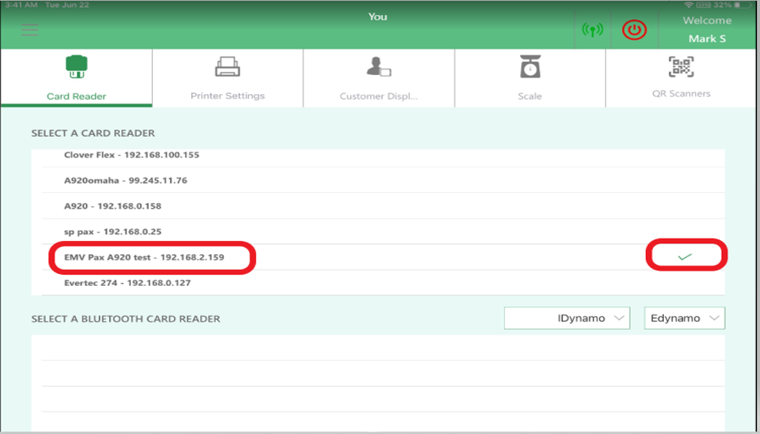

use the terminal in semi-integrated mode, we need to go to Operation in Linga
app> Hardware setting> Card reader setting> select the IP address of the
pax terminal and make sure it has a check mark in front of it. Then we need to
ring in the order on I pad, select pax tender payment and it would initialize
the pax terminal to take payment.
The processor app needs to open on the terminal and then it would connect to the Ipad.
Note- For semi-integrated mode we only
push Processor app, For example- Omaha or TSYS app.
Pax A35 Cable Setup
The steps for setting up Wireless and Hardwire network are the same as A77 and A920 Pro

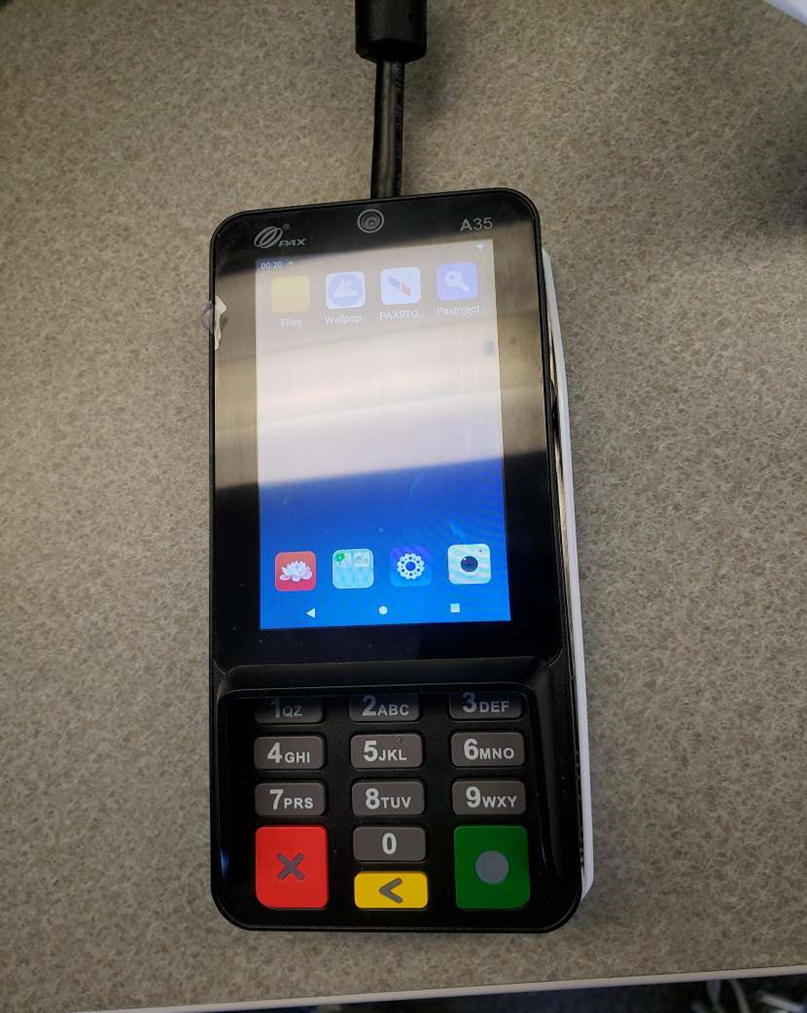

Front Screen Pax A35

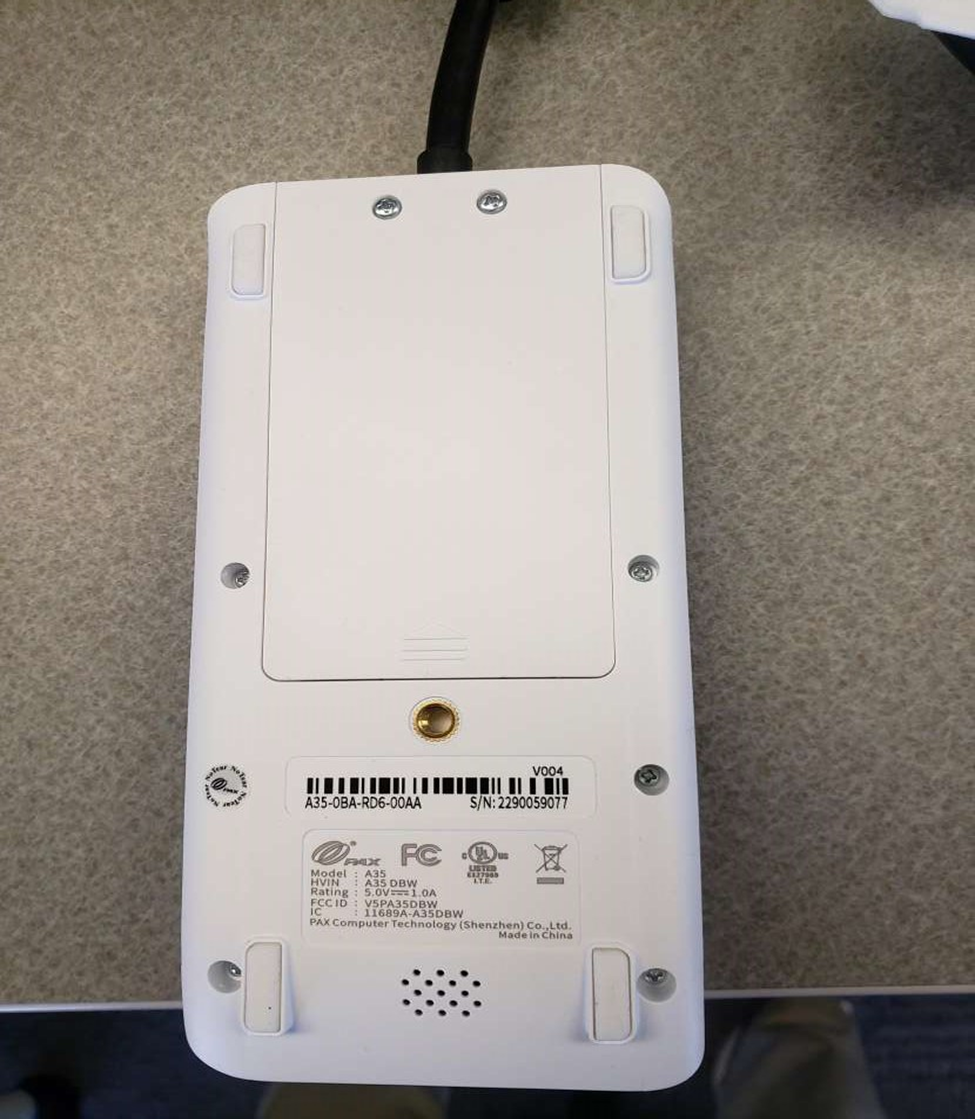

Back Side Pax A35
To
get access to loosen the two Phillips head screws and remove the cover

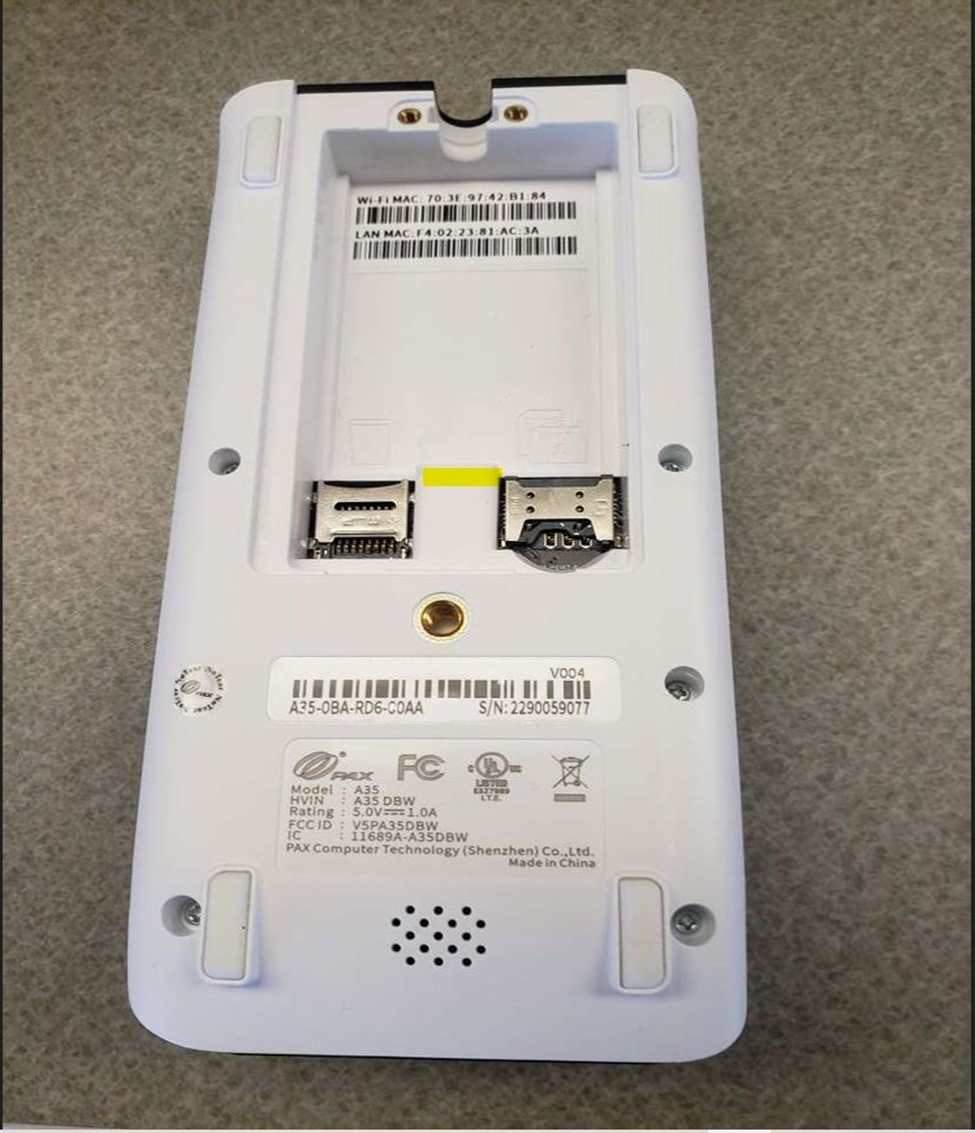

Pax A35 with back cover off
USB-C
Power plug highlighted in yellow

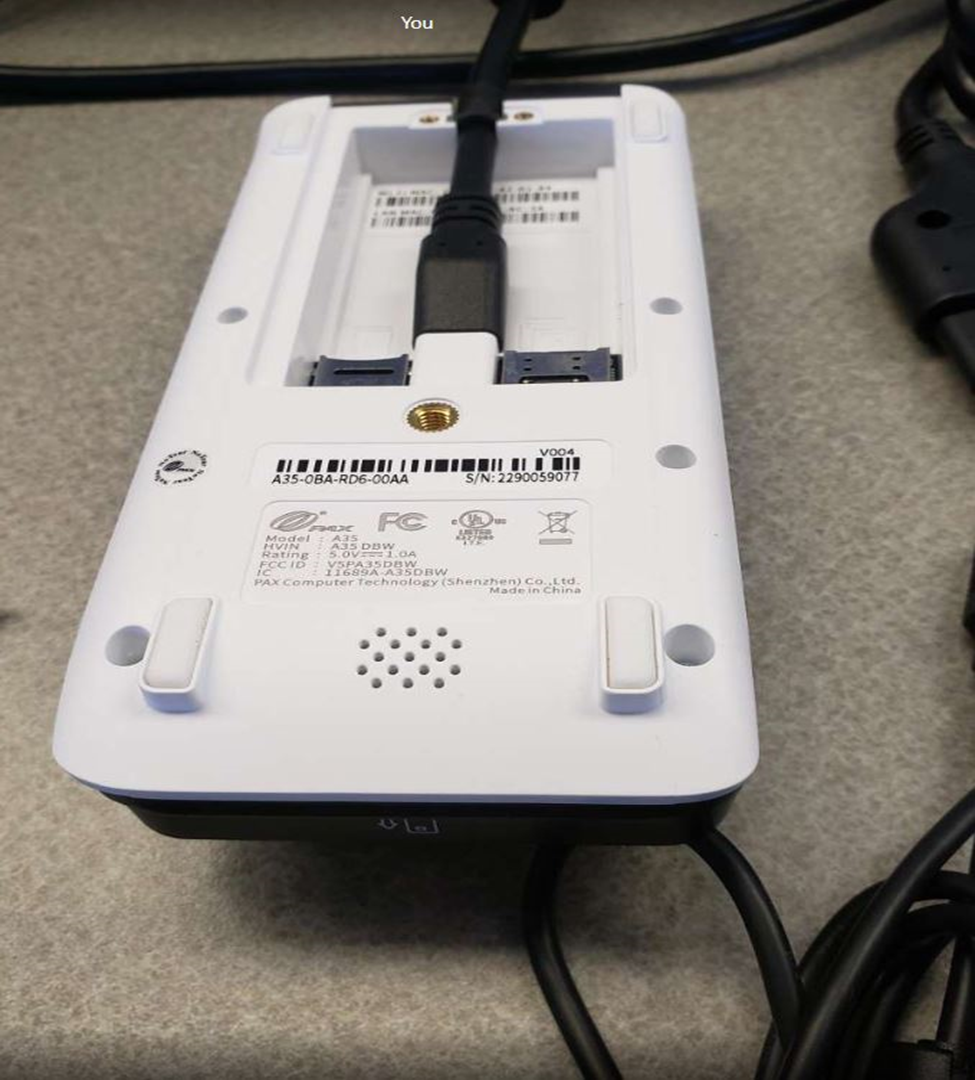

Pax A35 Power connection using Wireless
Insert USB-C cord in power connection on PaxA35, then connect regular USB to Power Adapter
When
done place the back plate on and tighten the Phillips screws.
Pax A35 Power Connection using Multicable for Hardwire Network
Connect Multicable to the USB-C Connector on the Pax A35
When
done place the back plate on and tighten the Phillips screws.

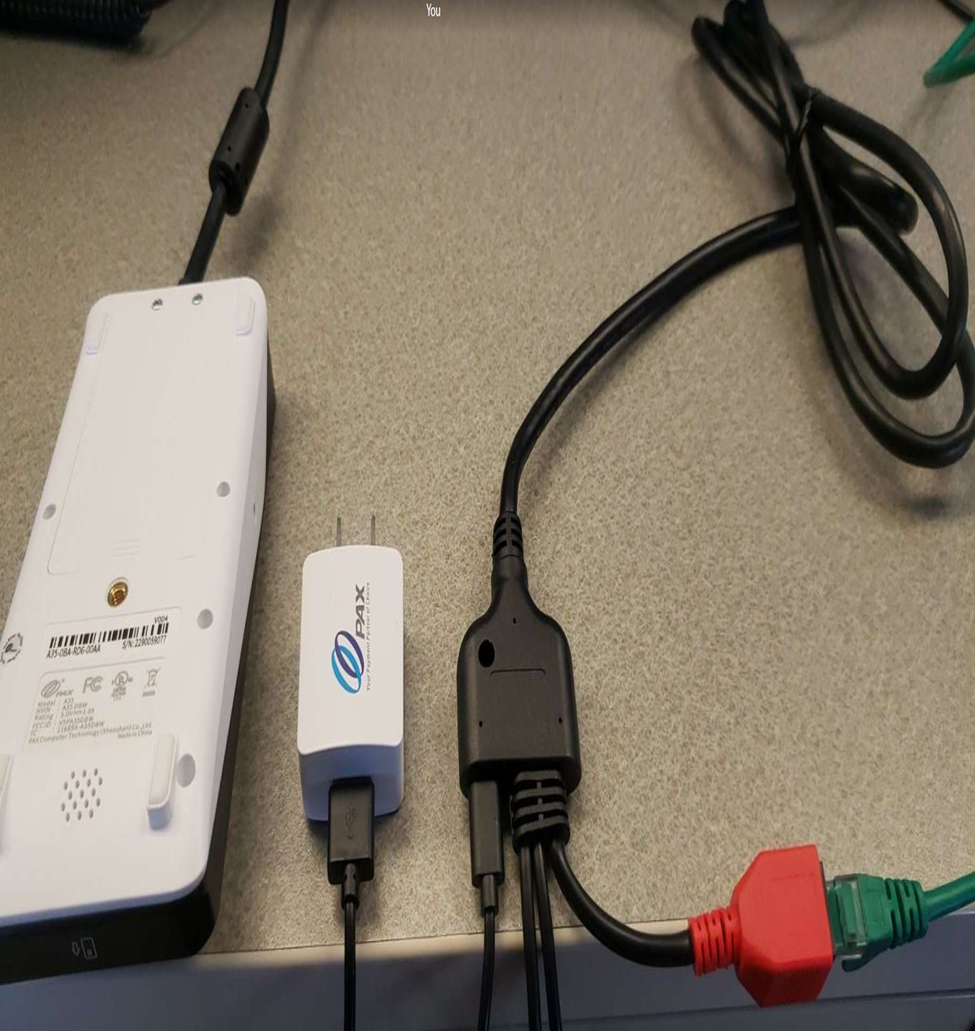

Pax A35 Connections with Hard Wire Cable
After
Back Plate is on connect USB-C from the power adapter to Multicable
this gives the PaxA35 power. Next, connect Network Cable to the Red
Network adapter. The two additional cables on the multicable RS-232 and
Regular USB cable are not used for this type of configuration.
