EPSON TM-U220B

EPSON TM-U220B

Note:  This information is available in a Word document and PDF file at the bottom of the page.

To locate the IP Address for printer:

On the back of the printer you will need to hold down the reset button (using a paper clip) until the “Dynamic Status Sheet” prints

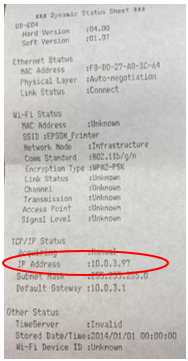

As Shown: Dynamic Status Sheet, this will show the IP Address


Factory Reset:

Turn off the printer and with a paper clip hold in the reset button on the back of the printer, while holding down the button turn the printer on. Keep holding rest button until the “Reset” ticket prints

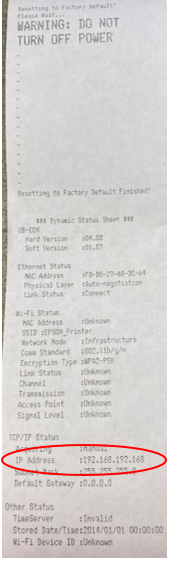

As Shown: This is the “Factory Default” ticket. Now the IP Address is rest and must change it to be static as well as changed on the LINGA BOH


Changing the IP Address:

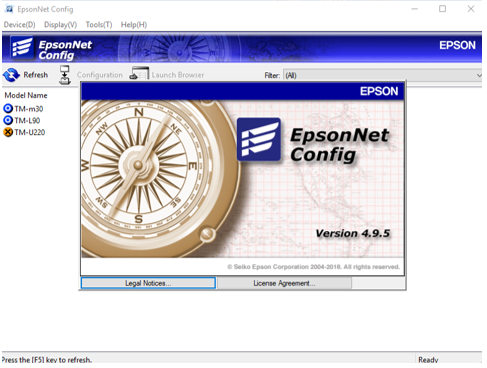

You will need to open the “EPSON Net Config” on the customers laptop (windows based). You can download this for them going onto ZOHO Assist and transferring the file from your computer to the customers

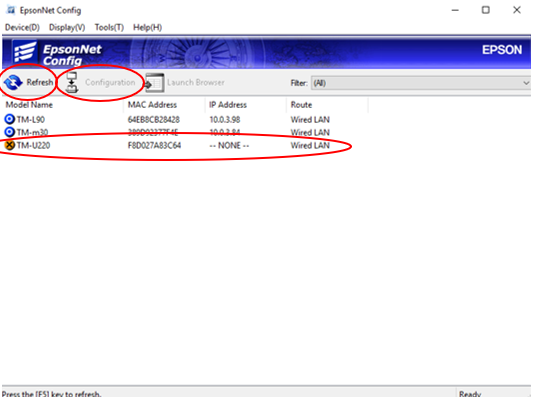

Make sure the printer is powered on and select the “Refresh” button. Notice the printer that we are working on comes up with an “X” You must click on the printer and press “Configuration”

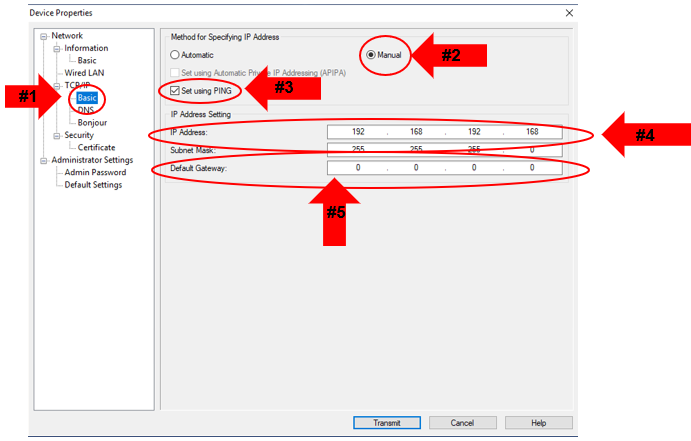

Now Select “Basic” under “TCP/IP” and select “Manual”, uncheck “Set using PING” and change the IP Address, then change the Default Gateway (GATEWAY MUST HAVE THE SAME FIRST 3 NUMBERS AS IP)

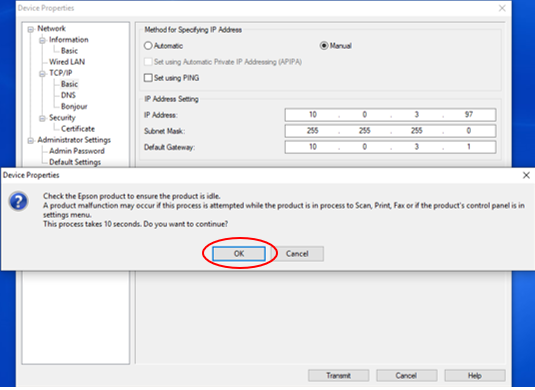

As Shown: The changes that were made. Press “Transmit” when complete

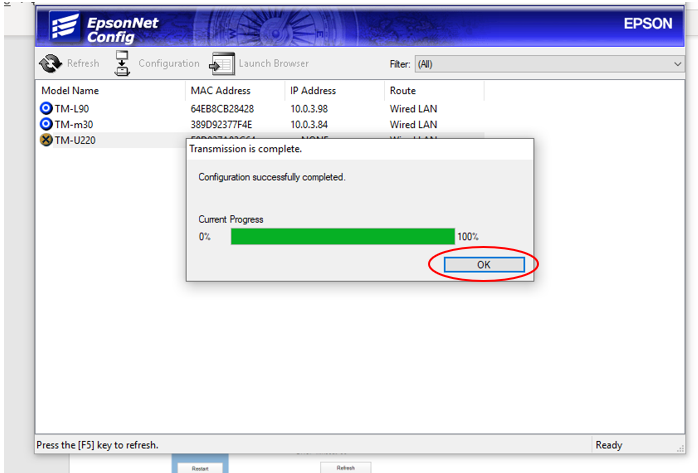

Select “OK”


Select “OK”


NOTICE: PRINTER IS NOT FULLY CONNECT YOU MUST PRESS “REFRESH”


As Shown: Printer is connected

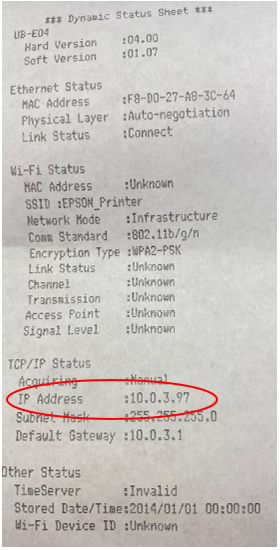

To confirm IP Address is set hold down the reset button and the “Dynamic Status Sheet” will print


Check LINGA BOH Printer IP Address:

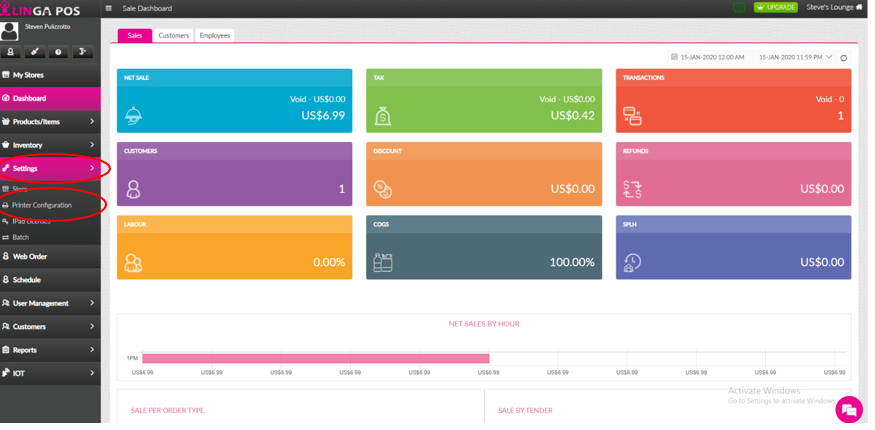

 Select “Settings”, “Printer Configuration”

Go to “Kitchen Printers” or “Receipt Printers” whatever is applicable then select “+Kitchen Printer” (if adding a new printer)

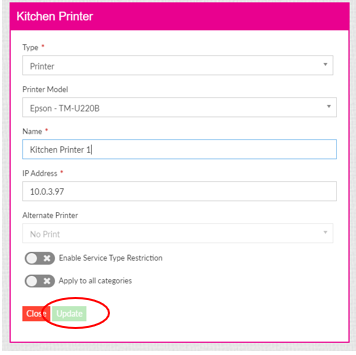

Edit the information and select “Update” when complete

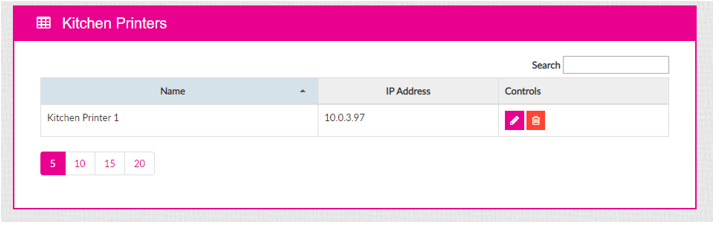

As Shown: Printer successfully connected
