The document attached explains how to set up the New BEN-SUEBT printer and is available in both PDF and word format.

How to get a Benseron printer online (IP):

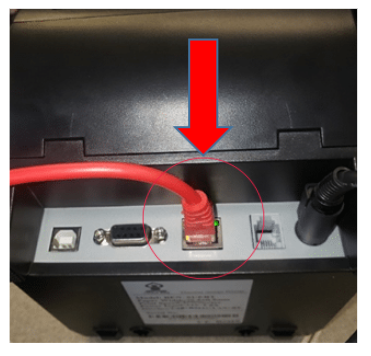

First connect the “Network cable” to the printer

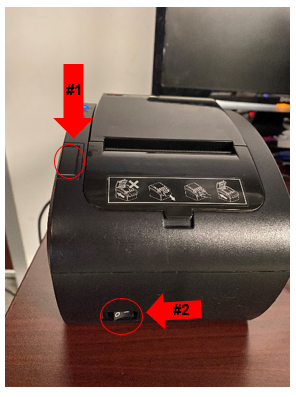

Step 1: Hold finger on the “feed” button

Step 2: (Finger still holding down the feed button) Turn “on” the printer

Step 3: Wait Approximately 23 seconds wait until the red power light and error light flashing twice and remove finger from “feed” button


Next:

Step 1: Hold finger on the “feed” button

Step 2: (Finger still holding down the feed button) Turn “on” the printer

Step 3: Wait until Printer Beeps and remove finger from “feed” button

Self-test will now print

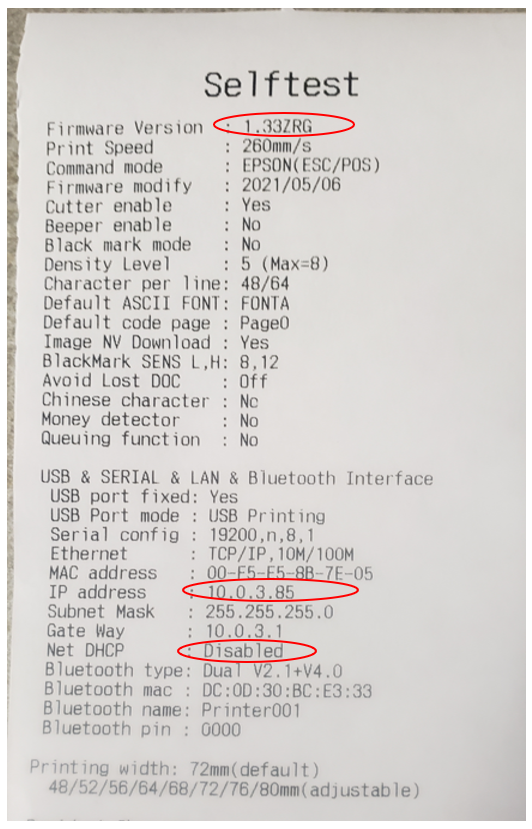

As shown: The Self-test will print and give you information regarding the printer. You will need the “IP Address” NOTICE: Net DHCP will it to say it is disabled but Ip is now fixed


Open a web browser (Only can be done on a Windows based PC. Ex: Chrome or Internet Explorer)

Type in “IP Address” from the printer and press “Enter”

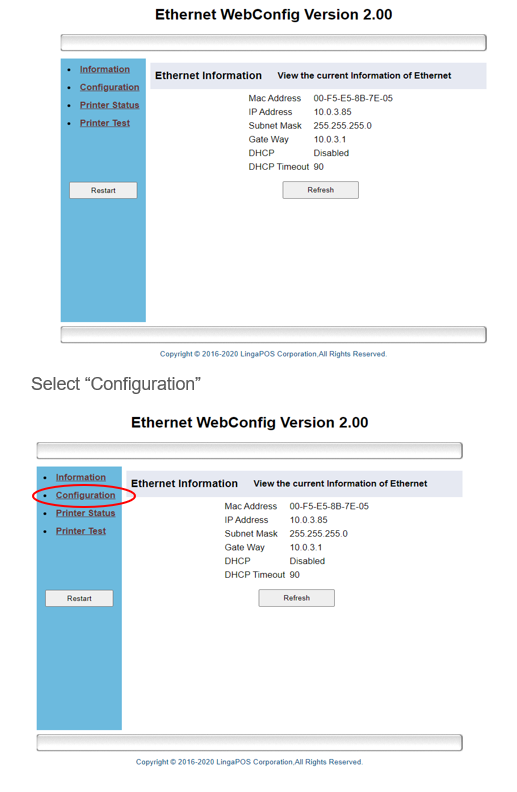

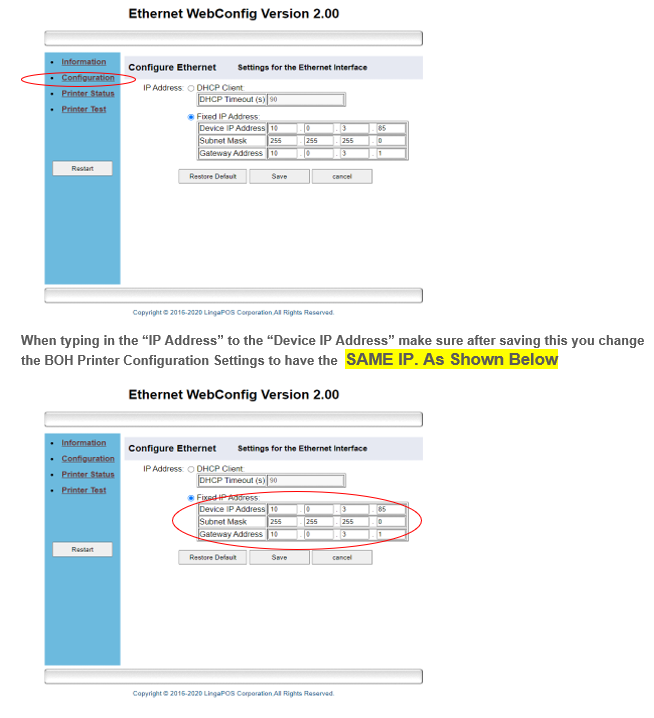

As Shown: The site you will be brought to after pressing “Enter”


Select “Fix IP Address”

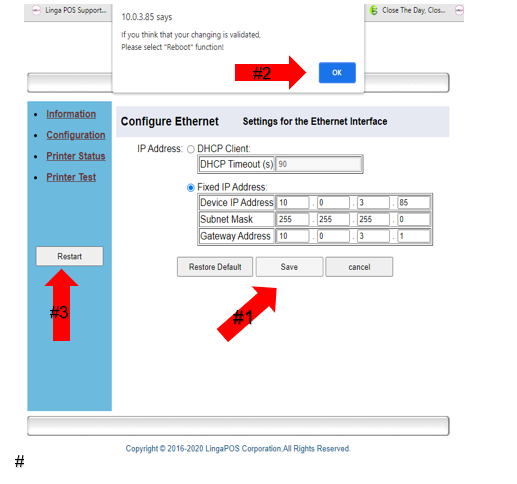

Select “Save” then Select “OK” then Select “Restart”



On this new firmware version 1.33ZRG DHCP will always be DISABLED as once you get an Ip on a network the printer Ip will be fixed.

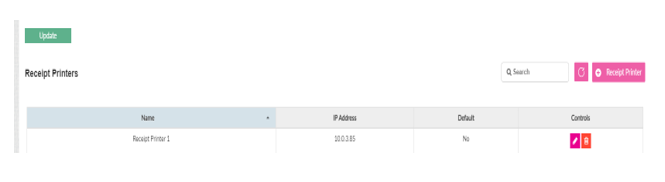

Below is what we need to create when adding a printer to the back office.





How to connect Bluetooth Printer:

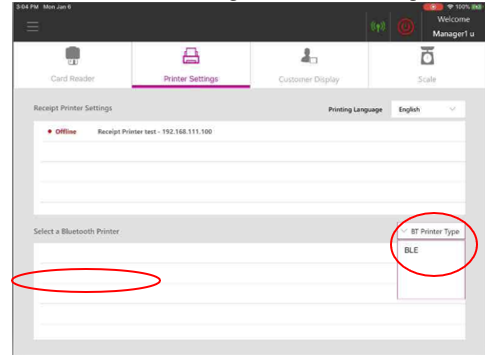

In the POS Hardware Settings, under Printer Settings, Select “BLE”

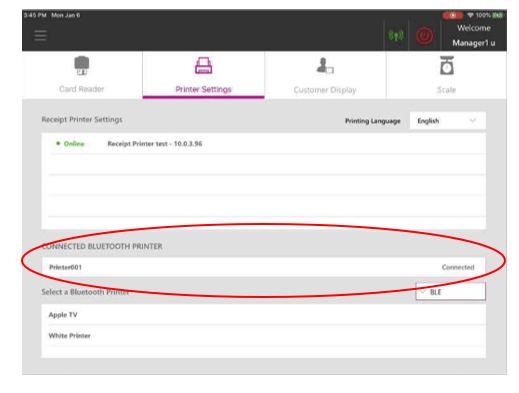

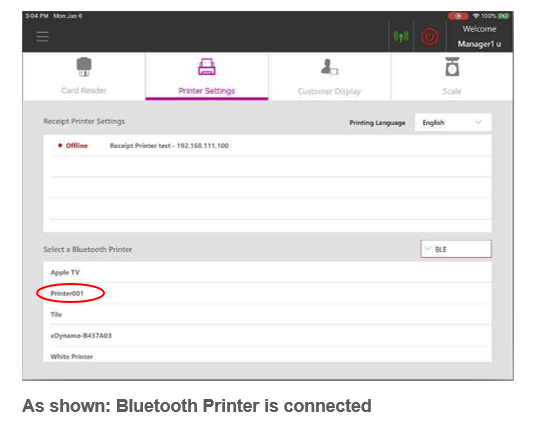

Select “Printer001” PLEASE NOTE: Make sure ALL Bluetooth printers are turned off before selecting “Printer 001” since ALL Bluetooth printers say “Printer 001”
