POS: Operation - Till Management (Open Cash Drawer Tab)

POS: Operation - Till Management (Open Cash Drawer Tab)



This option is used to open the Cash Drawer.

Note: Only Employees with the proper Role and Permission settings have access to open the Cash Drawer.


POS Settings

Navigation: Log In POS then select POS Settings

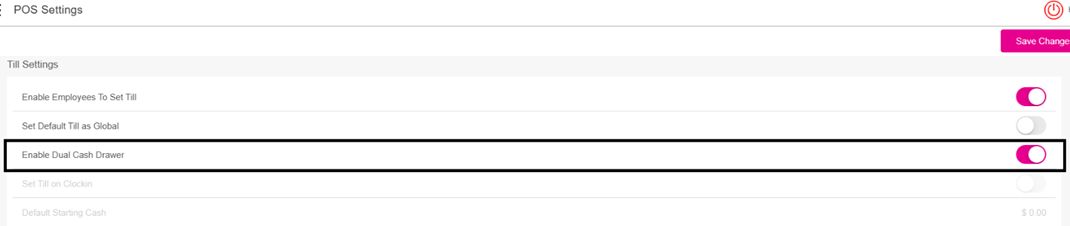

Dual Cash Drawer

For the Enable Dual Cash Drawer toggle, it will be disabled by default. If enabled, the Dual Cash Drawer toggle will be enabled in POS.




Set Till

Navigation: Log In POS then select Operations > Till Management > Till > Set Till

Setting a Till is entering the amount to Till starts with.
  1. Select Set Till, and the Open Till pop up appears.

  2. Enter the Denomination and Tip details then press Continue.

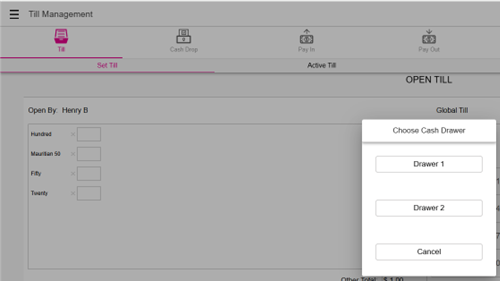

  3. On the Choose Cash Drawer pop-up that appears, select a Drawer.


  4. After selecting a Cash Drawer, the Active Till screen appears.

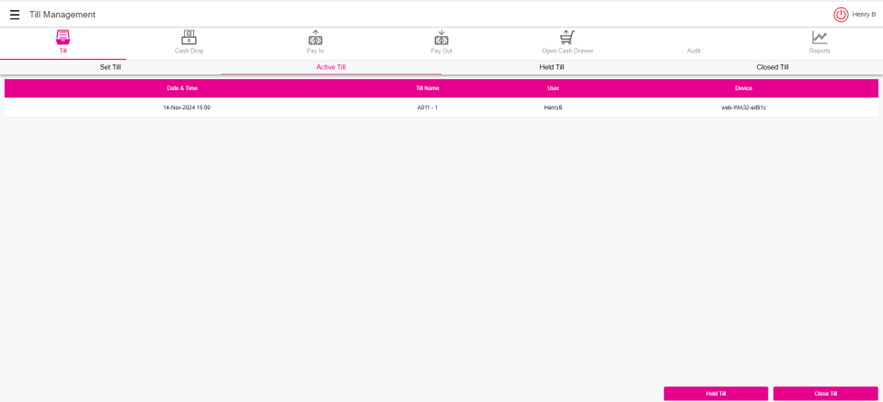

Active Till

When a Till is set, the Active Till screen appears


  1. When the Till Type is a User Till, the Till Balance will be incremented only for the respective Employee who has created the Till in the Device.

  2. Only one Till can be created per Employee per Store. If the Enable Dual Cash Drawer is enabled in POS Setting, another Employee can log in and create their own Till. If the toggle is disabled, then only one user can create one active till.
    1. The Enable Dual Cash Drawer functionality does not apply to Global Till.
    2. If the Global Tip is enabled, a pop-up with the message 'Dual cash enabled in POS settings. Global till is not allowed' appears.

  1. An Employee selects Drawer 1 then a second Employee set a till. Drawer 1 is greyed out and Drawer 2 becomes available.

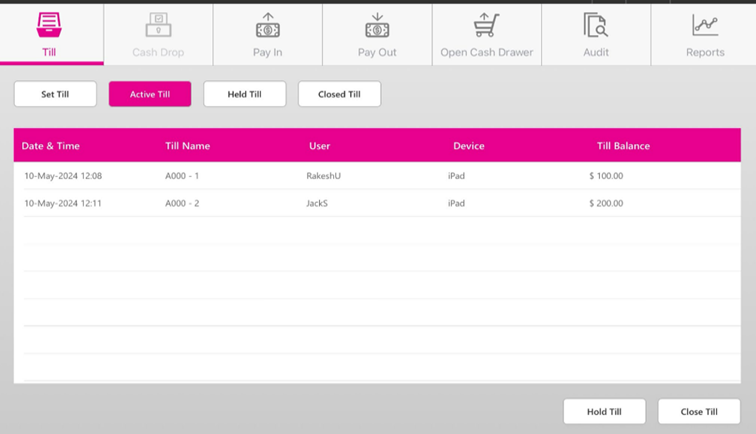

  2. If the second Employee selects Drawer 2, then two active tills appear.

    1. If the same Employee logs in and attempts to set another till, the pop-up message 'Already Have an active till' appears. If a third user tries to set a till, the same message will appear.



Open Cash Drawer Tab

Navigation: Log into POS, then select Operations > Till Management > Open Cash Drawer

Note: Only Employees with the proper Role and Permission settings have access to Open Cash Drawer.

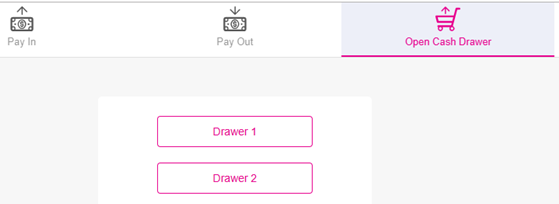

On the Open Cash Drawer screen: select a Drawer. The corresponding Drawer will open.
  1. Upon clicking cancel, the pop-up will be closed.

Note: If a Till has not been created, then Open Cash Drawer can't be used.


Check Options Screen

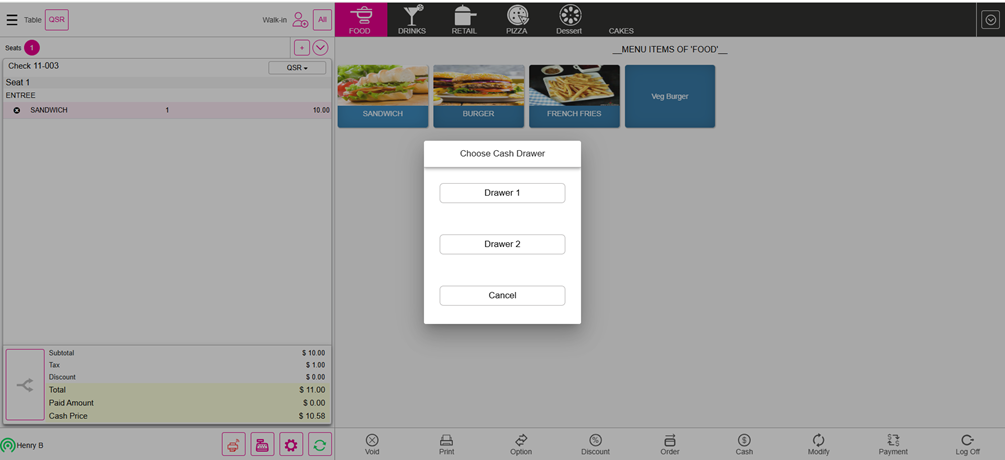

Select Open Cash Drawer, and the Cash Drawer will open automatically. Select a Drawer and the corresponding Drawer will open.


If Drawer 1 is assigned to User1 and Drawer 2 is assigned to User2, then User3 is allowed to open either Drawer 1 or Drawer 2. However, User3 is not allowed to initiate a Sale but can close a Sale using the drawer assigned to them.
