Dual Cash Drawer

Dual Cash Drawer

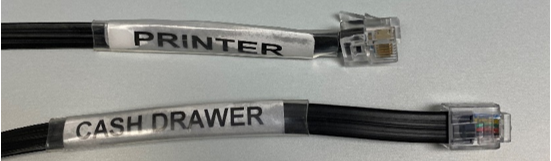

Important information to know about the cable of the Standard Cash Drawer:

One end of the cable will be labeled “Printer” and one end will be label “Cash Drawer”

The “Printer” end of the cable MUST be plugged into the printer

The “Cash Drawer end of the cable MUST be plugged into the cash drawer

FAILING TO HAVE THESE CABLES NOT PROPERLY CONNECTED WILL CAUSE CASHDRAWER TO NOT OPERATE

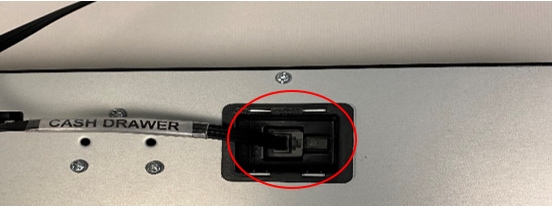

Insert the “Cash Drawer” end of the cable into the bottom of the Cash Drawer


Insert the “Printer” cable end to the printer


Enabling “Dual Cash Drawer”

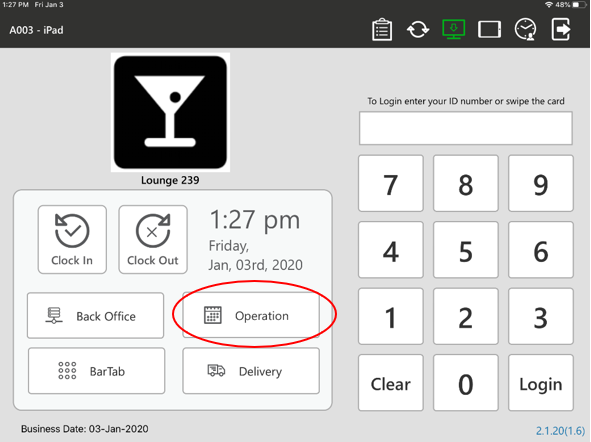

Select “Operation”


Select “POS Settings”

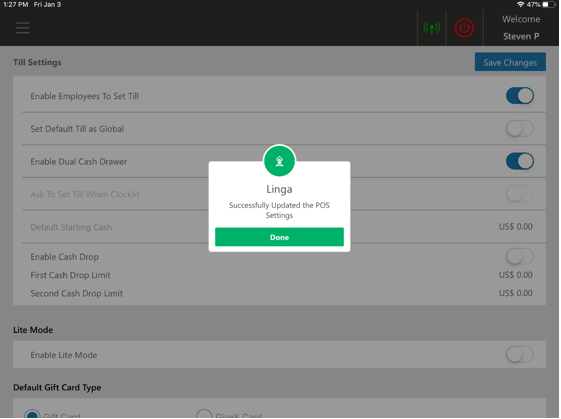

Turn on “Enable Dual Cash Drawer” and then press “Save Changes”


As shown: Dual Cash Drawer is enabled
