Octopus Bridge Integration (Pick-Up, and Shipping Orders)

Octopus Bridge Integration (Pick-Up, and Shipping Orders)


Introduction

Octopus Bridge is a cloud-based Integration platform, enabling bi-directional data exchange between physical stores and e-commerce channels. The Octopus Bridge platform is developed specifically for brick-and-mortar operations that need in-store point-of-sale (POS) to synchronize with web platforms such as Shopify, Magento, WooCommerce, BigCommerce, and Wix. Eliminate duplicate data entry, send POS/ERP product data to all e-commerce channels. Sync online and offline sales every few minutes.


Requirements

Before setting up the Octopus Bridge integration, ensure the following requirements are met:

Linga Back Office Essentials

  1. An active Linga Retail POS account.

  2. A Linga Online Orders (OLO) license is required. Ensure that the Online Orders license is included as part of the package and is enabled under the Account's License Settings.

  3. The Integration Hub license must be enabled in the account’s License Settings.

  4. The Online Orders toggle under POS Settings must be enabled to receive orders in the POS system.

  5. Octopus merchant credentials (Merchant Name and Access ID) provided by the Octopus team.

    Note:     The onboarding and initial configuration on the Octopus side will be handled by the Octopus team.


Subscribe and Configure in Linga Retail Back Office

Navigation: Log into Back Office. On the left-side pan, select Home then Integration Hub.

A screenshot of a phone Description automatically generated


  1. On the Integration Hub page, select Browse and Subscribe Integrations.


  2. Under the Online Order section for Octopus select Add.


  3. On the Disclaimer page that appears: after selecting the Terms and Conditions box at the bottom left, click Confirm at the upper right. After that, you are redirected to the Configure and Manage Integrations page.


  4. On the Current Integrations page: navigate to the row with Octopus, then under the right-side Actions column select the settings (gear) icon.


  5. The Octopus Settings page shows two tabs: Settings and Action.

    1. Under the Settings tab:

      1. Enter the Octopus merchant Name (provided by Octopus), which might be unique for all the stores on the Account.
      2. Enter the Access ID (provided by Octopus), which is unique for the store.

        Note:         The onboarding and initial configuration on the Octopus side will be handled by the Octopus team. Octopus merchant credentials (Merchant Name and Access ID) provided by the Octopus team.

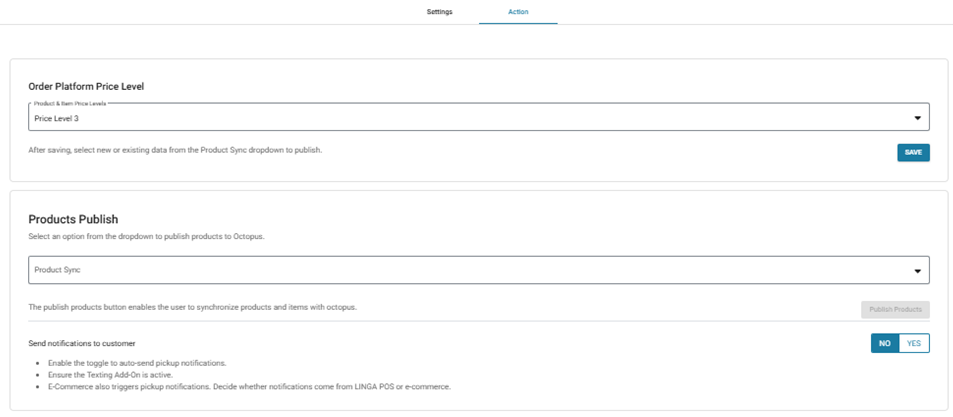

    2. Under the Action tab:

      1. Set the Order Platform Price Level by selecting the required price level from the dropdown and then clicking Save to apply your changes.
      2. Next, for the Products Publish dropdown, select an option (either Existing Products or New Products); only after this selection will the Publish Products option allow you to publish products to Octopus.
      3. Products will be reflected in Octopus based on the selected order platform price level and the chosen data publishing option.
        1. If you click Cancel, you are reverted to the Current Integrations page.


Event

Condition

Behavior

Changes made in Back Office

Changes to existing items (new items added, price level change, name, image, or SKU) are made in Back Office), then under the Octopus Actions tab an option from the Product Sync dropdown is selected.

The Publish Products button becomes enabled.

No options from the Product Sync dropdown are selected

The Publish Products button remains greyed out

Order Platform Price Level change in Integration Hub (Octopus Actions Tab)

The price level in Integration Hub is updated via the Actions tab in Octopus and an option from the Product Sync dropdown is selected

The Publish Products button becomes enabled

No options from the Product Sync dropdown are selected

Publish Products button remains greyed out

The price level in Integration Hub is updated via the Actions tab in Octopus without selecting an option from the Product Sync dropdown, then Save is pressed

No changes appear in Octopus. Only the price level has changed in the Linga Actions tab
Send Notification to Customer
The toggle must be enabled, and the Text add-on will be purchased and enabled in the account license settings. While receiving the order from Octopus, at least one contact method, email, or both—must be available. If both text and email are available, notifications are triggered for both. If only one option is available, the notification is triggered by the available method. The same information is captured in the audit log, indicating whether the notification was sent via email or text.
When the toggle is enabled, the system sends notifications to the customer via SMS or email indicating that the order is ready for pickup



Notes

  1. If you do not enter a valid Merchant's Name and Access ID: the system will not allow you to save, and a popup will appear prompting you to correct the configuration.

  2. If a Merchant's Name and Access ID is currently being used for an active store, the system won't allow you to apply the same credentials to another store.

  3. When navigating to Integration Hub → Octopus → Action tab, the Publish Products button will be disabled (greyed out) by default. The button will become enabled only after one of the options is selected from the dropdown.

  4. Real-Time Auto Sync

    1. This feature is used for inventory stock counts.
    2. If a product or item is deleted or inactivated in the back office, it will automatically stop appearing in Octopus. When it is activated again, you must manually publish the products from the Actions tab.
    3. When you set Track Inventory = No during item creation and save it in the back office, the item will be automatically deleted from Octopus. Once you set it to No, you cannot change it back to Yes. In this case, you will need to create the product and items again in the back office with different names to sync it again with Octopus.

Operating Octopus

Operational Considerations

  1. As of now, Linga supports both Pickup and Shipping orders, and orders cannot be edited within the POS.
  2. Only fully paid Orders will be transmitted from Octopus to the Linga POS, as payments cannot be collected or modified in the POS once the order is created.
  3. Refunds can be processed from the e-commerce side for both unfulfilled and completed orders. Refunds on completed orders appear in the POS Refund tab, while cancellations or refunds on active receipts appear in the Void tab.
  4. All tax configurations, pickup & Shipping order settings, and paid order settings will be managed directly from the providers such as Shopify, Woo-Commerce, etc. and they will assist with these configurations during the onboarding process.

Octopus Product Management

Octopus onboarding, portal access, and training are provided and supported by the Octopus team. Linga is not responsible for Octopus portal configuration, feature walkthroughs, or operational training within Octopus. The screenshots below are included for general reference only to provide a brief overview of the Octopus Product Management interface. For all Octopus portal questions, training, or troubleshooting, please contact the Octopus team directly
  1. All products and items created and synchronized from Linga Retail BO to Octopus are displayed in the Octopus Product Management dashboard. Click Stock to view the Stock counts for all available Stores.


  2. By clicking the product SKU and Item Name, the Edit Product page appears where you can customize the Item. Depending on the available inventory and timing, you can configure and customize the items for the e-commerce platform.

    1. Note: If you customize anything in Octopus, it will not be reflected in Linga; the changes will only appear on the e-commerce site

  3. You can add or send the products and items by selecting a receipt's corresponding checkbox, selecting the e-commerce partners (Shopify or WooCommerce) at the top of the screen, and then clicking the plus (+) button. Once done, these products will become visible in the e-commerce portal.



Managing Orders in Octopus

Once the Order is placed in WooCommerce, Shopify, or another source by the customer: it will automatically appear in Octopus, under the Order Management screen:


Searching Orders

  1. Source of Orders - Selecting the dropdown displays the store's configured marketplace marketplaces/websites through which the customer places their order, allowing you to view the corresponding orders from that source.


  2. Select one or more of the following filter options: Order Status, Order No., User Name/Email, From and To Dates, and SKU.


  3. Once you customize the search settings, click Search at the bottom-right. The Orders will be displayed based on your selected Source and other search options.

  4. If you click the Channel Manager Order Number (channel mgr order#)...


    the Order Details page for the selected Order will appear:





POS

  1. Once an order is placed through a third-party e-commerce platform (such as WooCommerce), it is sent to Octopus (Aggregator).
  2. From the aggregator, the order is forwarded to Linga, where it appears in the Online Orders section under Active status, displaying the following details: Order #. (E-commerce No.), Receipt #., Platform, Customer Name, Type, Fulfillment details, Shipping carrier, Items, Total, Payment status, Order status, date, Digital receipt
  3. Additional Orders can be displayed along with the details outlined above. The following filters are available by Status:

    1. Unfulfilled - only unfulfilled orders will be displayed along with the details mentioned in point 2
    2. Completed - only Completed orders will be displayed along with the details mentioned in point 2
    3. Ready to Pick up - only Ready for pickup orders will be displayed along with the details mentioned in here Order#, Receipt#, Platform, Customer name, type, Pickup person, Items, Total, Payment status, Pickup date, Order status, Date and Digital receipt
    4. Ready to Ship - only Ready for Ship orders will be displayed along with the details mentioned in here Order#, Receipt#, Platform, Customer name, type, Shipping address, Shipping carrier, Items, Payment status, Pickup date, Order status, date Digital receipt
    5. Unfulfilled - only unfulfilled orders will be displayed along with the details mentioned in point 2

  4. For the Order Status there are the following options:
    1. Active - Whenever a new order is received and the order status is Unfulfilled, Ready for Shipping, or Ready for Pickup, all associated receipts remain in Active status. Only receipts for Completed orders are excluded; all other receipts remain under Active status.
    2. Unfulfilled - Whenever a new order is received, its status will be Unfulfilled.
    3. Ready for pickup - Once the unfulfilled order is packaged, it is marked as Ready for Pickup for pickup orders.
    4. Ready to Ship - Once the unfulfilled order is packaged and the shipping label has been printed; its status is automatically updated to Ready to Ship
      Note- Refunds are exclusively handled through Woo-Commerce or Shopify e‑commerce platforms
    5. Completed - Once the order is successfully fulfilled in linga, its status changes to Completed

    1. Note: If you cancel or refund an order on the third-party order side (e.g., WooCommerce): for both fulfilled and unfulfilled orders the status is automatically sent to Linga POS and the order status is updated to Refunded and Void on the receipt status section under the Refunded column



Open an Order

  1. Select an Order line item then click Open Order. A new page will open where you can view the Order details.

  2. From this page, you can view all the items on the Order.


  3. Click Cancel, the page will navigate back to the Online Orders.
    1. Note: Only the Cancel button is clickable; all other options are not clickable



Print

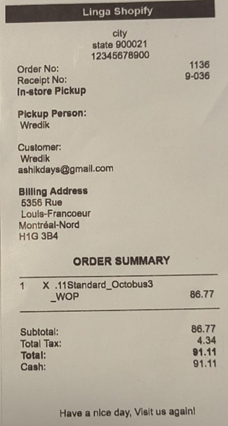

By clicking any Order line item and then selecting Print, the connected printer will print the order details.



Operation

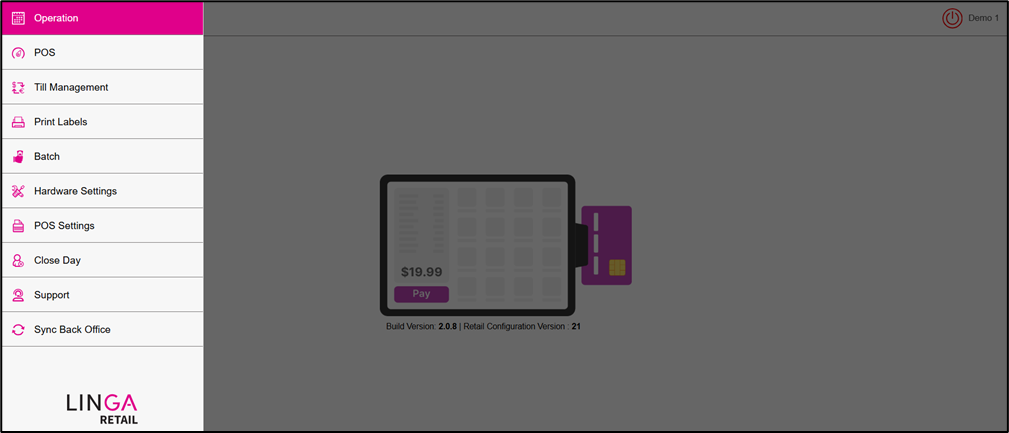

By clicking the Operation button, the page navigates to the Operations page.




Digital Receipt

Select an Order line item, then click the Digital Receipt button at the right-end of the line.
  1. The Digital Receipt appears, where you can view the Order details.

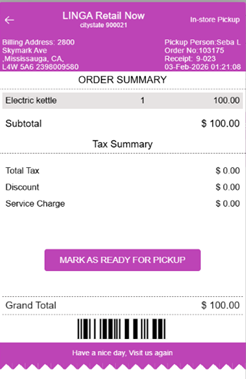

  2. Click Mark as Ready for Pickup. The Confirm pop-up appears.


  3. Click Yes, Confirm. The order will be marked as Ready for Pickup in both the All Status and Pickup Orders sections for the selected item.

  4. Once the Order Status changes to Ready for Pickup and the status is updated in WooCommerce, a notification is sent to the customer. After receiving the notification, the customer can visit the store, present a valid ID, and collect the Order.

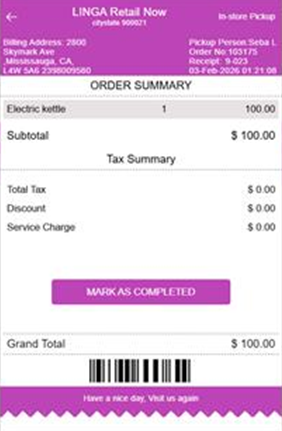

  5. In this situation, the store employee can select the specific line item and click Digital Receipt. The same receipt screen will appear. Click Mark as Completed at the bottom. After clicking Yes, Continue in the confirmation popup, the Order Status will be updated to Completed.



Shipping Orders

  1. A customer places an order through an e-commerce platform and selects Shipping as the fulfillment method.

  2. The order is synchronized to the POS and displayed in the Online Orders list with the status Unfulfilled.

  3. The store associate prepares the order and prints the shipping label through the e-commerce platform.

  4. Once the shipping label is printed, the POS automatically detects the action and updates the order status from Unfulfilled to Ready to Ship, including the shipping carrier details, without any manual intervention.

  5. The shipping carrier (such as UPS) collects the package from the store.

  6. After the package has been collected: the employee opens the order's digital receipt in POS user then manually selects Mark as Completed.

  7. The order status is then updated to Completed, and the order is moved to the Completed tab.
